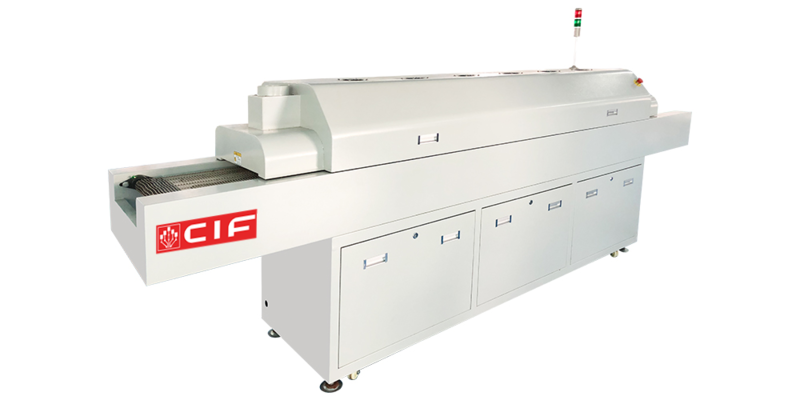

6 Heating Zones Reflow Oven – KAYO-RF630
- Heating Zone : Upper 6 Zones/ Down 0 Zone
- Heating Zone Length : 2200mm
- Heating Method : Full Forced Hot Air Heating
- Warm-up time : 15 – 20min
- Cooling Method : Transverse Flow Forced Air Cooling
- Temperature control precision : ±1℃
- PCB Max. Width : Mesh belt width 350mm
- Transmission Direction : Left→right (right→left optional)
- Conveyor Speed : 0-2000mm/min
- Power Supply : 3-phase 380V (220V optionnel) 50/60Hz
- Dimensions: 3600 x 700 x 1220mm
- Weight : about 500KG
